Kinematic Modeling & Simulation of a 5-DOF Robotic Manipulator

Key Engineering Contributions

1. 01
   Kinematic Modeling: Derived coordinate frames and transformation matrices utilizing the industry-standard Denavit-Hartenberg (DH) convention to map the robot's joint space to 3D Cartesian space.
2. 02
   Custom MATLAB Algorithms: Programmed computationally efficient Forward and Inverse Kinematics (IK) solvers. The IK solver accurately calculated the required joint angles to reach desired coordinates while enforcing strict mechanical constraints (e.g., keeping the end of arm tooling perfectly vertical: (q2 + q3 + q4 = 0).
3. 03
   3D Workspace Analysis: Generated 3D point-cloud visualizations of the robot's physical reach by simulating 100,000 randomized joint configurations, strictly bounded by the robot's physical joint limits.
4. 04
   Validation & Error Handling: Validated analytical models against a provided numerical simulator. Integrated robust error handling to automatically flag coordinate inputs that fell outside the physical workspace or violated mechanical joint limits.

Visual Documentation

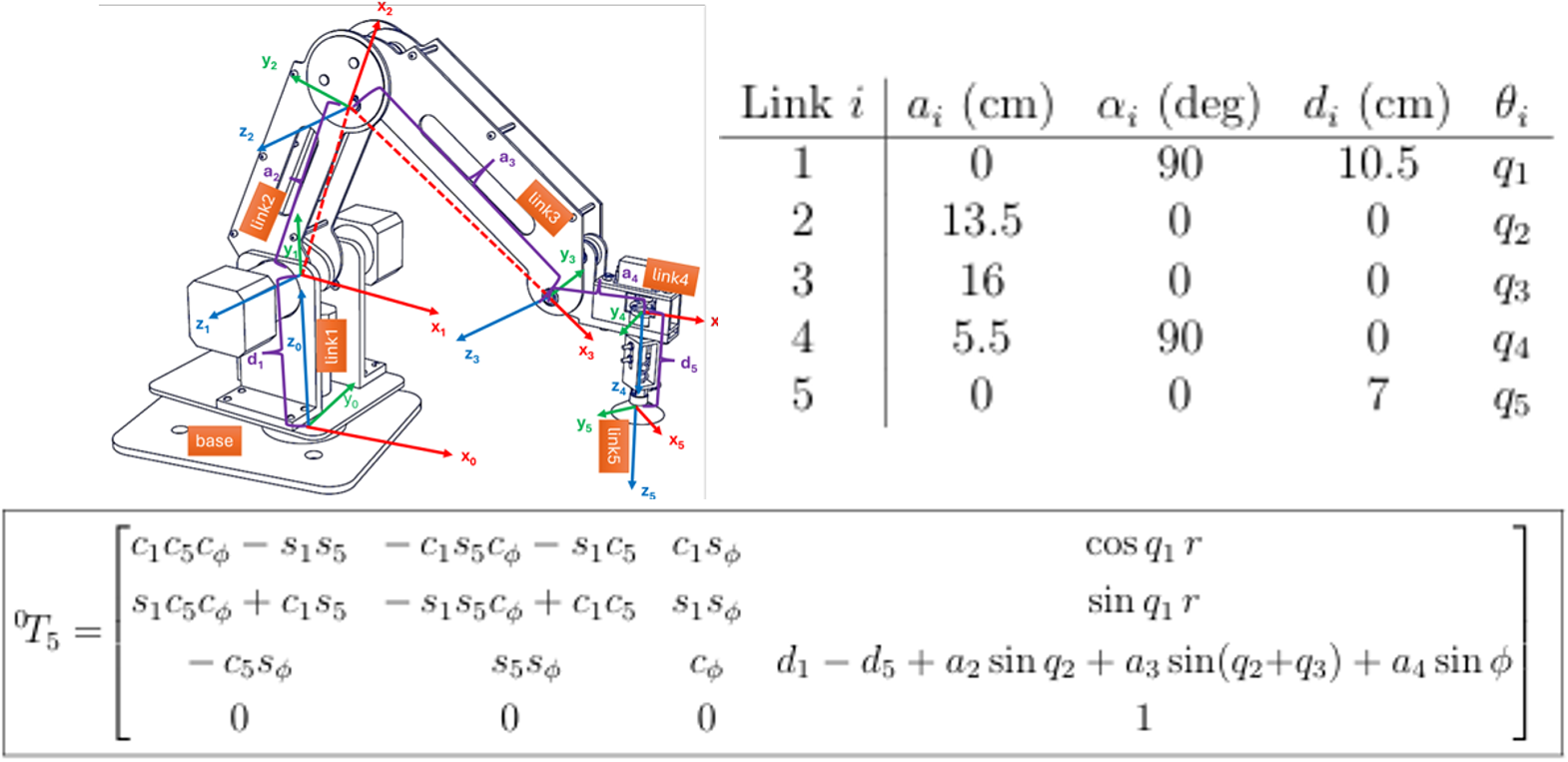

Figure 1


Solved forward kinematics homogeneous transformation matrix using DH-Parameters

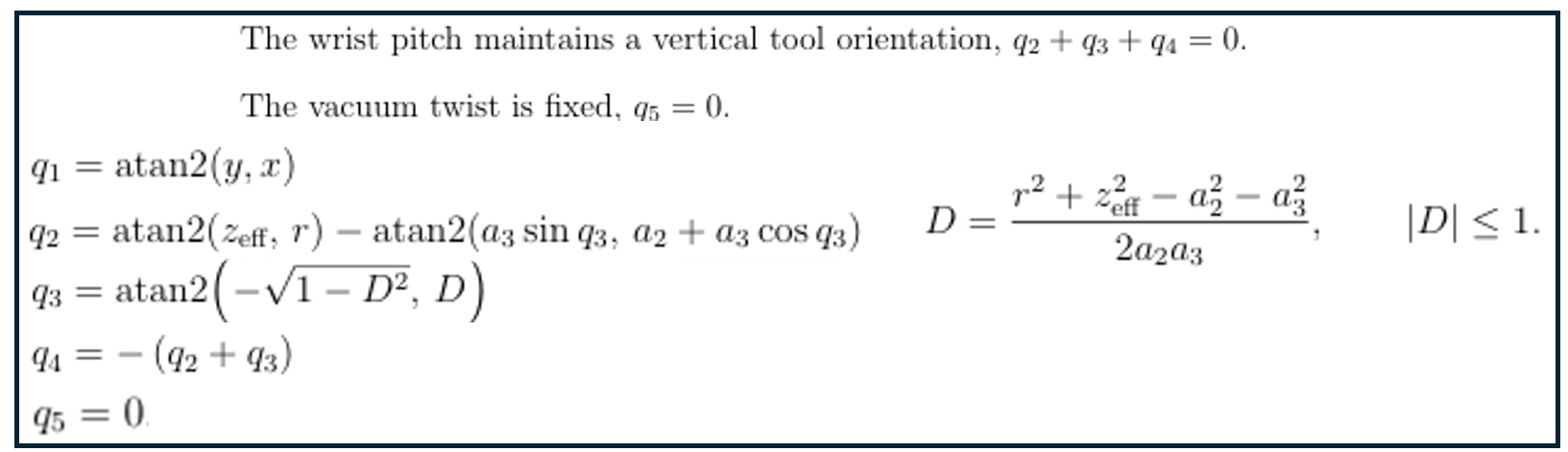

Figure 2


Solved inverse kinematics using mechanical constraints of the end of arm tooling

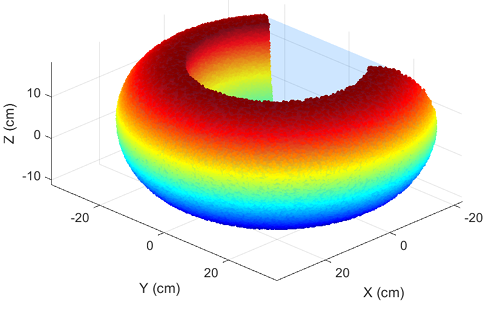

Figure 3


Solved reachable workspace of robotic end-effector in MATLAB

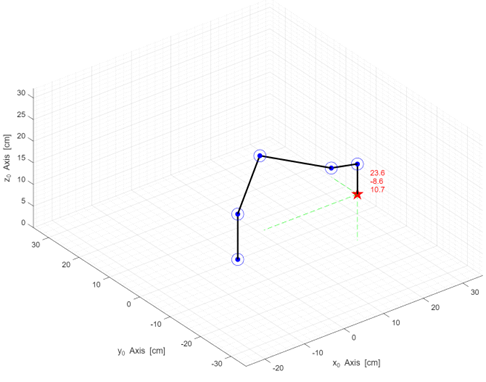

Figure 4


MATLAB simulation used to validate developed forward and inverse kinematic algorithms
