Product Development: T-Shirt Taut Device

Key Engineering Contributions

1. 01
   Phase 1: Ideation & Kinematic Logic: Identified the need for a device to keep garments taut during steaming; conceptualized a symmetric linkage system where a single input rotation triggers synchronized motion in opposing arms.
2. 02

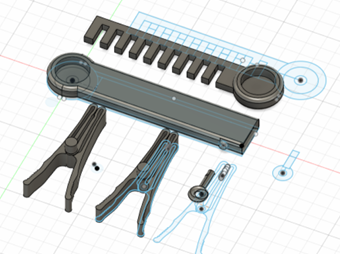

   Phase 2: Parametric CAD Modeling: Translated hand-drawn schematics into a robust 3D model in Autodesk Fusion 360, utilizing anthropometric data from various garment sizes (ranging from 53 cm to 61 cm) to define adjustable range constraints.
3. 03
   Phase 3: 3D Printing & Fabrication: Successfully fabricated the functional prototype using additive manufacturing, selecting materials capable of withstanding the mechanical stress of the weight and clip mechanisms.
4. 04
   Phase 4: Functional Validation: Verified the "successful use" of the physical device, confirming the symmetric arms effectively held various shirt sizes taut to facilitate a more efficient and professional steaming process.

Visual Documentation

Figure 1.1


Part 1 of 3

Figure 1.2


Part 2 of 3

Figure 1.3


Part 3 of 3

Figure 2

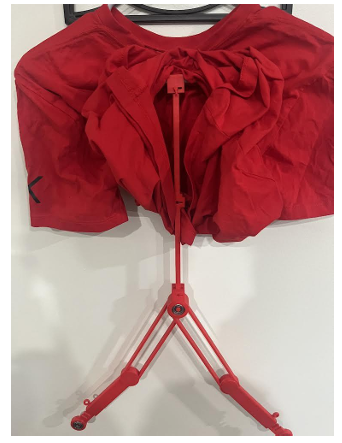

Prototype device attached to a hanger

Figure 3

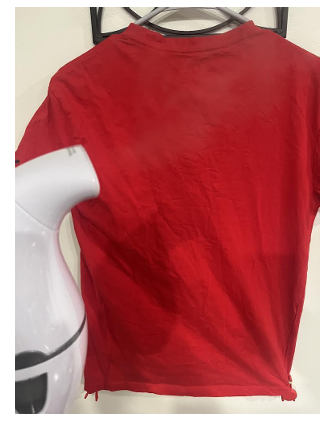

Prototype device holding the shirt taut so that it may be steamed
